Running a big LLM across multiple GPUs with vLLM

Sooner or later everyone running models locally hits the same wall. You find a model you want, you look at the download size, and it is bigger than the GPU you own. A 235B model needs roughly 236 GB just for its weights. The card we have holds 96 GB, and even the largest data-centre GPUs available today top out well below 236 GB. So the model does not fit, and no amount of clever flags will make 236 GB squeeze into 96 GB.

The answer is to use more than one GPU. That part everybody knows. The part that is genuinely confusing is what "use more than one GPU" actually means. Does each GPU get a copy of the model? Does the model get cut in half? Do the GPUs take turns? Which of those is happening, and what does it cost you?

Let's answer that properly, with a real model on real hardware.

What this post covers #

This is the runbook. Eight steps, from downloading a 236 GB model to serving it across four GPUs, with every command, flag, startup log line and real error explained. It is written for the person with root on the box, and it assumes no prior knowledge of distributed computing: if you know what a GPU is and you have run a model locally once, you are qualified.

It deliberately does not explain the machinery underneath. Why splitting a layer across GPUs makes prefill faster but costs you an all-reduce per layer, why that trade lands differently on decode, and why NVLink is the variable that decides the winner, are all part two, coming next. Where a "why" would otherwise interrupt the work, this post says so and moves on.

New to the jargon? Every term, flag, and benchmark number here is explained in plain English in the local LLM glossary.

The machine and the model #

Numbers mean nothing without the hardware attached, so here it is once.

The machine: a server with 8x NVIDIA RTX PRO 6000 Blackwell Server Edition cards. Each card has 96 GB of memory, and the machine reports 95.01 GiB of that as usable. We borrowed 4 of the 8 cards for this work.

One detail that matters more than it looks: these GPUs are not connected by NVLink. NVLink is NVIDIA's fast direct GPU-to-GPU cable. Without it, GPUs talk to each other over PCIe and through the CPU, which is slower. You can check what you have with one command:

root@utho-gpu-rtxpro6000-8-62383:~# nvidia-smi topo -m

| Device | GPU0 | GPU1 | GPU2 | GPU3 | GPU4 | GPU5 | GPU6 | GPU7 | NIC0 | CPU Affinity | NUMA Affinity | GPU NUMA ID |
| :--- | :---: | :---: | :---: | :---: | :---: | :---: | :---: | :---: | :---: | :--- | :---: | :---: |
| **GPU0** | **X** | SYS | SYS | SYS | SYS | SYS | SYS | SYS | SYS | 48-55,176-183 | 6 | N/A |
| **GPU1** | SYS | **X** | SYS | SYS | SYS | SYS | SYS | SYS | PHB | 32-39,160-167 | 4 | N/A |
| **GPU2** | SYS | SYS | **X** | SYS | SYS | SYS | SYS | SYS | SYS | 0-7,128-135 | 0 | N/A |
| **GPU3** | SYS | SYS | SYS | **X** | SYS | SYS | SYS | SYS | SYS | 16-23,144-151 | 2 | N/A |
| **GPU4** | SYS | SYS | SYS | SYS | **X** | SYS | SYS | SYS | SYS | 112-119,240-247 | 14 | N/A |
| **GPU5** | SYS | SYS | SYS | SYS | SYS | **X** | SYS | SYS | SYS | 96-103,224-231 | 12 | N/A |
| **GPU6** | SYS | SYS | SYS | SYS | SYS | SYS | **X** | SYS | SYS | 64-71,192-199 | 8 | N/A |
| **GPU7** | SYS | SYS | SYS | SYS | SYS | SYS | SYS | **X** | SYS | 80-87,208-215 | 10 | N/A |
| **NIC0** | SYS | PHB | SYS | SYS | SYS | SYS | SYS | SYS | **X** |  |  |  |

**Legend:**

| Symbol | Description |
| :--- | :--- |
| **X** | Self |
| **SYS** | Connection traversing PCIe as well as the SMP interconnect between NUMA nodes (e.g., QPI/UPI) |
| **NODE** | Connection traversing PCIe as well as the interconnect between PCIe Host Bridges within a NUMA node |
| **PHB** | Connection traversing PCIe as well as a PCIe Host Bridge (typically the CPU) |
| **PXB** | Connection traversing multiple PCIe bridges (without traversing the PCIe Host Bridge) |
| **PIX** | Connection traversing at most a single PCIe bridge |
| **NV#** | Connection traversing a bonded set of `#` NVLinks |
| **NIC0** | `mlx4_0` |

On our machine every pair of GPUs reports SYS, which means the traffic goes across PCIe and then across the link between the CPU sockets. If you had NVLink you would see NV1, NV2 and so on instead. Keep this in mind, because it changes which splitting method is fastest.

The model: Qwen/Qwen3-235B-A22B-Instruct-2507-FP8. Let's unpack that name, because it is doing a lot of work:

• 235B is the total parameter count, 235 billion.
• A22B means 22 billion active parameters. This is a mixture-of-experts model: each layer holds 128 small expert networks and a router picks just 8 of them per token, so you pay for 235B in memory but only about 22B in arithmetic.
• FP8 is the number format the weights are stored in, 8 bits each, so one byte per parameter.

The software: vLLM 0.27.1 running in the official container, with PyTorch 2.13.0 and CUDA 13.0, on driver 610.43.02.

Step 1: Getting the model onto the machine #

Before anything can be split across GPUs it has to be on disk, and with a model this size that is not a formality. It is the step that bit us hardest, so it goes first.

Check your disk first, because this is a real production hazard #

On a shared machine, filling the disk can take down everything else on it. This is the part we learned the hard way, and it is worth more than a footnote. Our test box also runs a Kubernetes inference platform. Kubernetes treats free disk as a managed resource called ephemeral-storage, and when free space fell below its eviction threshold, the kubelet did exactly what it is designed to do.

It evicted pods to reclaim space, tainted the node so nothing new could schedule, and garbage-collected container images. Several of those images had been built locally and existed in no registry, so they could not simply be pulled again.

Nothing about that is a Kubernetes bug, and nothing about it is specific to our setup. The lesson generalises: before you download a quarter of a terabyte onto a machine, check what else lives on that disk and what will happen when it fills. df -h before you start, and know your platform's eviction threshold, which is often far higher than "0 bytes free". If the machine is shared, keeping a couple of hundred gigabytes of headroom is not paranoia.

The download #

With the headroom confirmed, you download it with the Hugging Face CLI:

root@utho-gpu-rtxpro6000-8-62383:~# pip install huggingface_hub hf_transfer
root@utho-gpu-rtxpro6000-8-62383:~# HF_XET_HIGH_PERFORMANCE=1 hf download Qwen/Qwen3-235B-A22B-Instruct-2507-FP8
Downloading bytes: ████████████████████████████████████████████████▏                                                                                                             | 24.4GB,  234MB/s
Reconstructing (incomplete total...):  13%|███████████████▋                                                                                                             | 10.0GB / 80.0GB,  104MB/s
Fetching 34 files:   0%|                                                                                                                                                      | 0/34 [00:00<?, ?it/s]


HF_XET_HIGH_PERFORMANCE=1 switches on a downloader that parallelises across connections. On a 236 GB download that is the difference between an hour and most of an afternoon, so it is worth the extra package.

What you actually get #

The download is not one giant file. It arrives as 24 shards, plus the small text files that describe the model:

config.json
generation_config.json
model-00001-of-00024.safetensors
model-00002-of-00024.safetensors
...
model-00024-of-00024.safetensors
model.safetensors.index.json
tokenizer.json

Three of those matter to you:

• .safetensors files hold the actual weights, and unlike the old .bin format, simply opening one can never run hidden code on your machine.
• model.safetensors.index.json is the master map. The weights are spread over 24 files, and this map says which file each piece lives in. When vLLM needs layer 62, it looks here, sees shard 17, and opens only that file.
• config.json is the model's spec sheet: how many layers, how many heads, how many experts. It is a few kilobytes, and it decides almost everything in this post, including how many GPUs you can split across.

One more detail, because a crash in Step 8 depends on it. Because this model is FP8, each weight is a single byte, which cannot record very large and very small numbers accurately at the same time. The checkpoint works around that by cutting the weights into blocks of 128 by 128 numbers and giving each block one extra number, its scale, that the GPU multiplies back in to recover the real weight. These block scales ship alongside the weights, and the arrangement is declared in config.json:

"quantization_config": {
  "quant_method": "fp8",
  "fmt": "e4m3",
  "weight_block_size": [128, 128],
  "activation_scheme": "dynamic"
}

Remember those block scales. They are the reason for the most annoying crash we hit, down in Step 8.

Do not spend any time on the shard count itself. How the weights are packaged changes nothing about the numbers inside them, so shard size is a distribution question, not an inference question. Part two covers where those 10 GB boundaries come from and what actually sits inside each file, which is not "layers 1 to 4".

Where it gets stored #

By default everything lands under ~/.cache/huggingface/hub, in a layout that looks strange the first time you see it:

~/.cache/huggingface/hub/models--Qwen--Qwen3-235B-A22B-Instruct-2507-FP8/
├── blobs/          <- the real files, named by hash
├── refs/           <- which commit "main" points at
└── snapshots/
    └── e156cb4e.../  <- symlinks with friendly names, pointing into blobs/

The content lives once in blobs/ under its hash, and snapshots/ holds human-readable symlinks into it. That is why pulling two revisions of a model does not always double your disk usage, and it is also why du and df can disagree with your intuition.

The practical consequence for serving: mount that whole directory into your container and set HF_HOME to it, which is exactly what the -v and -e HF_HOME flags in Step 5 are doing. Otherwise the container downloads its own copy.

One more thing about loading that surprises people. When you split the model over 4 GPUs, vLLM starts 4 separate processes, one per GPU, and every one of them reads the whole download from disk, keeping only the quarter it needs.

vLLM's own docs say it plainly: with tensor parallelism, "each process will read the whole model and split it into chunks". So at -tp 4 the machine reads the 236 GB not once but four times, close to a full terabyte of disk reads before the server can answer anything. That is why a big model takes minutes to load even from a fast disk.

Our first Model loading took line said 45 seconds, but only because we had just downloaded the model, so most of it was still sitting in RAM, where the operating system keeps recently used files. From a cold disk it takes much longer.

Step 2: Will it fit? The ten-minute check #

Do this on paper before the download, not after. The arithmetic is simpler than people expect.

First, the weights. One parameter costs this many bytes:

Weights = parameters x bytes per parameter. For our model: 235 billion at 1 byte each, about 236 GB. Our GPU holds 95.01 GiB, so the model is roughly 2.3 times too big for one card. That number alone tells you the minimum GPU count.

Second, remember weights are only one of three things that must fit:

1. The weights. Fixed size, known before you start.
2. The KV cache. The model's memory of the conversation so far. It grows with prompt length and with how many users you serve at once.
3. Working space. Scratch memory for the calculations, plus framework overhead.

Third, size the cache. Every term comes straight out of the model's config.json:

bytes per token = 2 x layers x kv_heads x head_dim x bytes_per_number

For our model: 2 x 94 x 4 x 128 x 2 = 192,512 bytes, call it 188 KiB per token. Sounds small, but this model supports a 262,144-token context, so one single full-length conversation would need about 47 GiB. That is half a GPU for one user, and it is why "the weights fit, so I am fine" is wrong. It is also why --max-model-len exists, as you will see in the flags table.

One piece of good news: under tensor parallelism the KV cache is divided across GPUs rather than duplicated, so 4 GPUs give you roughly 4x the conversation room on top of making the weights fit.

Step 3: Pick your split, then check it divides #

vLLM gives you three ways to spread a model over GPUs, and they are genuinely different things. The one-minute version, so you can pick a flag and move on:

• Tensor parallelism (--tensor-parallel-size) slices every layer across all GPUs, so they all work on the same token at once. Best tokens per second, evenly split memory, divided KV cache. The default choice for GPUs inside one machine. This is what we run.
• Pipeline parallelism (--pipeline-parallel-size) gives each GPU a block of consecutive layers and passes the work along. The GPUs barely need to talk to each other, so it is the tool for spanning machines with a slow network, and it wins on time to first token, but GPUs spend time waiting their turn.
• Expert parallelism (--enable-expert-parallel) exists only for mixture-of-experts models and hands out whole experts instead of slicing them. Its job is trillion-parameter-scale clusters where even a tensor-parallel split cannot hold all the experts. It is not a memory saver at our scale, as our measurements below show.

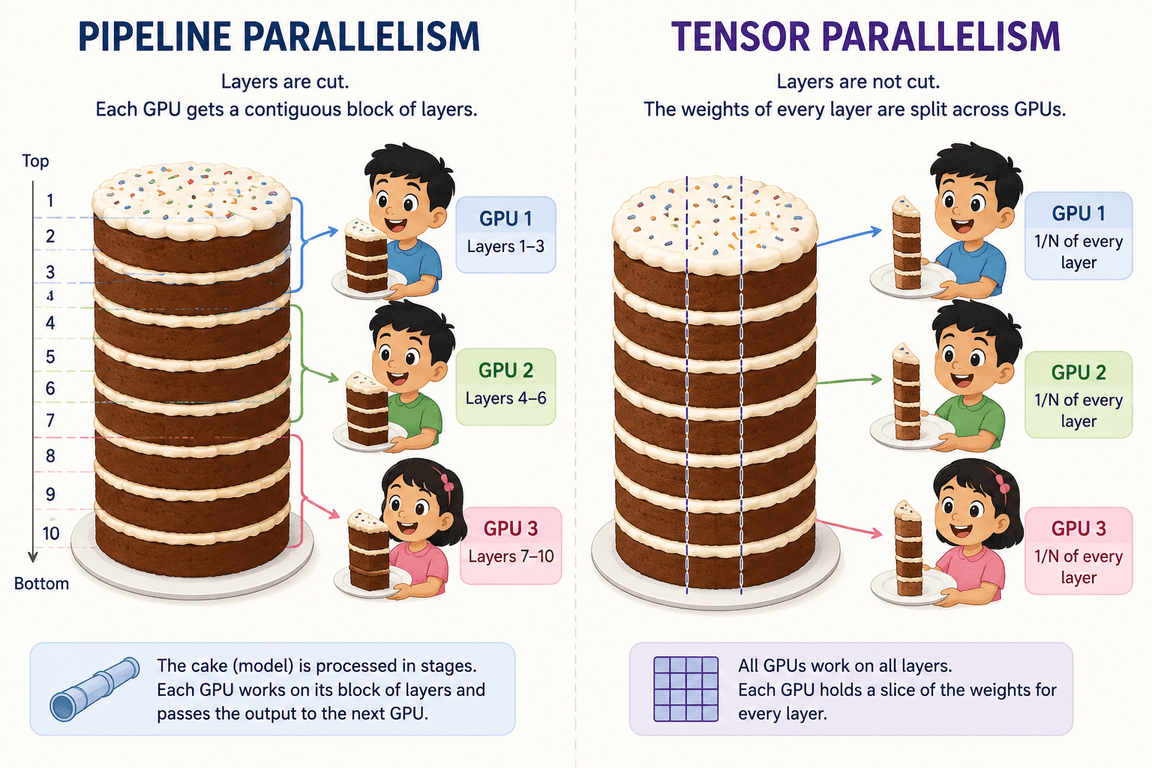

The first two are easiest to hold in your head as two ways of cutting a layer cake:

That is the whole distinction. Pipeline parallelism cuts across the layers and each GPU owns a few of them start to finish. Tensor parallelism cuts down through the layers and every GPU owns a sliver of all 94, which is why they all work on the same token at the same time. Expert parallelism is the odd one out and does not fit the cake picture: it deals whole expert networks to different cards, 32 each in our case.

The drawing shows three cards because it is illustrating the two shapes, not our setup. Card counts are not free choices, which is exactly what the next check is about.

Then the ten-second pre-flight check. You cannot pick any number for --tensor-parallel-size: because attention heads are handed out whole, your TP size must divide the model's head counts. Open config.json:

{
  "num_hidden_layers": 94,
  "hidden_size": 4096,
  "num_attention_heads": 64,
  "num_key_value_heads": 4,
  "head_dim": 128,
  "num_experts": 128,
  "num_experts_per_tok": 8
}

For our model:

• num_attention_heads is 64, so 2, 4, 8, 16 all divide it cleanly.
• num_key_value_heads is 4. This is the binding constraint. At -tp 4 each GPU gets exactly one key/value head. At -tp 8 there are not enough to go around, and vLLM has to duplicate them across GPUs, which wastes memory and gives you less benefit than you would hope.
• num_experts is 128, which divides evenly by 4 and by 8, so expert parallelism has more freedom than tensor parallelism here.

That is the real lesson: the KV head count, not the parameter count, usually decides how wide you can go. It is the first thing we check on any new model, and it takes ten seconds.

Step 4: Every flag, explained #

Before the command, the vocabulary. Here is every flag we use and why it has the value it has. If you only remember one thing from the runbook, make it this table.

Two container flags matter just as much, and neither is a vLLM flag:

Step 5: The command, line by line #

Here is the whole thing. Every line is explained above, and we will walk the structure below it.

root@utho-gpu-rtxpro6000-8-62383:~# docker run -d --name vllm-tp4 \
  --gpus '"device=1,4,5,6"' \
  --ipc=host \
  -p 8000:8000 \
  -v /root/.cache/huggingface:/root/.cache/huggingface \
  -e HF_HUB_OFFLINE=1 \
  -e HF_HOME=/root/.cache/huggingface \
  -e VLLM_USE_DEEP_GEMM=0 \
  vllm/vllm-openai:latest \
    Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 \
    --served-model-name qwen3-235b \
    --tensor-parallel-size 4 \
    --gpu-memory-utilization 0.90 \
    --max-model-len 32768 \
    --max-num-seqs 32 \
    --port 8000
.
.
.
(Worker_TP0 pid=770) INFO 08-21 18:18:05 [gpu_model_runner.py:5405] Model loading took 55.19 GiB memory and 48.502592 seconds
(EngineCore pid=558) INFO 08-21 18:21:55 [kv_cache_utils.py:2235] GPU KV cache size: 621,392 tokens
(EngineCore pid=558) INFO 08-21 18:21:55 [kv_cache_utils.py:2236] Maximum concurrency for 32,768 tokens per request: 18.96x
(Worker_TP1 pid=771) INFO 08-21 18:22:06 [gpu_worker.py:789] Free memory on device (94.05/95.01 GiB) on startup. Desired GPU memory utilization is (0.9, 85.51 GiB). Actual usage is 56.89 GiB for consumed memory (weights + non-torch), 0.76 GiB for peak activation, and 0.32 GiB for CUDAGraph memory. Replace gpu_memory_utilization config with `--kv-cache-memory=29407858586` (27.39 GiB) to fit into requested memory, or `--kv-cache-memory=38581581312` (35.93 GiB) to fully utilize gpu memory. Current kv cache memory in use is 27.85 GiB.
(Worker_TP0 pid=770) INFO 08-21 18:22:06 [gpu_worker.py:789] Free memory on device (94.05/95.01 GiB) on startup. Desired GPU memory utilization is (0.9, 85.51 GiB). Actual usage is 56.89 GiB for consumed memory (weights + non-torch), 0.76 GiB for peak activation, and 0.32 GiB for CUDAGraph memory. Replace gpu_memory_utilization config with `--kv-cache-memory=29407858586` (27.39 GiB) to fit into requested memory, or `--kv-cache-memory=38581581312` (35.93 GiB) to fully utilize gpu memory. Current kv cache memory in use is 27.85 GiB.
(Worker_TP3 pid=773) INFO 08-21 18:22:06 [gpu_worker.py:789] Free memory on device (94.05/95.01 GiB) on startup. Desired GPU memory utilization is (0.9, 85.51 GiB). Actual usage is 56.89 GiB for consumed memory (weights + non-torch), 0.76 GiB for peak activation, and 0.32 GiB for CUDAGraph memory. Replace gpu_memory_utilization config with `--kv-cache-memory=29407858586` (27.39 GiB) to fit into requested memory, or `--kv-cache-memory=38581581312` (35.93 GiB) to fully utilize gpu memory. Current kv cache memory in use is 27.85 GiB.
(Worker_TP2 pid=772) INFO 08-21 18:22:06 [gpu_worker.py:789] Free memory on device (94.05/95.01 GiB) on startup. Desired GPU memory utilization is (0.9, 85.51 GiB). Actual usage is 56.89 GiB for consumed memory (weights + non-torch), 0.76 GiB for peak activation, and 0.32 GiB for CUDAGraph memory. Replace gpu_memory_utilization config with `--kv-cache-memory=29407858586` (27.39 GiB) to fit into requested memory, or `--kv-cache-memory=38581581312` (35.93 GiB) to fully utilize gpu memory. Current kv cache memory in use is 27.85 GiB.



Reading it top to bottom:

• docker run -d starts the container in the background and prints its id. Drop the -d if you would rather watch the logs scroll past.
• --name vllm-tp4 gives it a name so you can say docker logs vllm-tp4 instead of copying an id.
• -p 8000:8000 maps the container's port 8000 to the host's port 8000, so you can reach the API from outside.
• -v /root/.cache/huggingface:/root/.cache/huggingface shares your downloaded models with the container. Without it the container would download all 236 GB again.
• -e HF_HUB_OFFLINE=1 tells the Hugging Face library not to phone home. It uses the local copy, which also means startup does not fail if the network is down.
• vllm/vllm-openai:latest is the image. Everything after it is passed to vLLM, because the image's entrypoint is already vllm serve.
• The first argument after the image is the model. Everything after that is a vLLM flag from the table above.
• -e VLLM_USE_DEEP_GEMM=0 is here because without it this exact model would not start on these exact GPUs. It is not a general recommendation, and Step 8 explains the crash it avoids. If you are on different hardware, try without it first.

One thing worth knowing about that entrypoint: because it is already vllm serve, running docker run ... vllm/vllm-openai:latest python3 -c "..." does not work the way you expect. Your Python gets handed to vllm serve as arguments and you get a confusing parse error. To run something else inside the image, override it:

root@utho-gpu-rtxpro6000-8-62383:~# docker run --rm --gpus '"device=1,4"' --entrypoint python3 vllm/vllm-openai:latest -c "
import torch
print('GPUs visible:', torch.cuda.device_count())
print('can GPU 0 talk to GPU 1 directly:', torch.cuda.can_device_access_peer(0, 1))
"
GPUs visible: 2
can GPU 0 talk to GPU 1 directly: True

That is a genuinely useful sanity check before you start a long model load, because it confirms the container can see the cards and that direct GPU-to-GPU access is available.

Step 6: How to read the startup log #

The startup log is the best teaching tool in the whole stack, and almost nobody reads it. Four lines tell you everything about whether your configuration is sensible.

Line one, how big the weights are per GPU. You get one of these per worker:

(Worker_TP0) Model loading took X GiB

If you divide the full model size by your --tensor-parallel-size and get roughly this number, the split worked. If this number equals the whole model, something is wrong and you are not actually splitting.

Line two, what is left for conversations:

Available KV cache memory: X GiB

If this is negative, your weights plus overhead already exceeded the budget, and vLLM will refuse to start. That is the clearest possible signal that you need more GPUs, a smaller number format, or a lower --max-model-len.

Line three, the cache in tokens:

GPU KV cache size: N tokens

This is the total number of tokens the server can remember across all users at once. You can predict it: take the available cache memory, divide by the bytes-per-token figure from Step 2 (divided by your TP size, since each card keeps only its own heads' share).

Line four, how many users that really means:

Maximum concurrency for 32,768 tokens per request: N.NNx

This is the one to show your capacity planner. If it says 2.05x, then two users can each have a full-length 32k conversation, and a third will have to wait or be preempted. It is simply the previous line divided by --max-model-len.

For our run the four lines came out as: Model loading took 55.19 GiB per worker, Available KV cache memory: 27.85 GiB, GPU KV cache size: 621,392 tokens, and a maximum concurrency of 18.96x at 32k. Predicting that token count by hand, 27.85 GiB divided by 47 KiB per token per card, gives 621,337 against the 621,392 vLLM printed, which is the kind of agreement that tells you the mental model is right.

Step 7: Benchmark it, and what we would run #

Once it was running, we compared all three ways of splitting the same model over the same 4 GPUs: tensor parallelism on its own, tensor parallelism plus expert parallelism, and pure pipeline parallelism. Same hardware, same flags otherwise, same benchmark.

Two numbers do most of the talking. Time to first token is how long the user waits before anything appears, and output tokens per second is how fast the answer then streams. Every configuration trades one against the other; part two is about why.

The benchmark is vLLM's own, 1024 tokens in and 256 tokens out per request, with --ignore-eos so every request generates exactly 256 tokens and the comparison is fair:

root@utho-gpu-rtxpro6000-8-62383:~# docker exec vllm-tp4 vllm bench serve \
  --model Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 \
  --served-model-name qwen3-235b \
  --base-url http://localhost:8000 \
  --dataset-name random --random-input-len 1024 --random-output-len 256 \
  --max-concurrency 1 --num-prompts 12 --seed 42 --ignore-eos

Starting initial single prompt test run...
Skipping endpoint ready check.
Starting main benchmark run...
Traffic request rate: inf
Burstiness factor: 1.0 (Poisson process)
Maximum request concurrency: 1
100%|██████████| 12/12 [00:55<00:00,  4.62s/it]
tip: install termplotlib and gnuplot to plot the metrics
============ Serving Benchmark Result ============
Successful requests:                     12
Failed requests:                         0
Maximum request concurrency:             1
Benchmark duration (s):                  55.38
Total input tokens:                      12288
Total generated tokens:                  3072
Request throughput (req/s):              0.22
Output token throughput (tok/s):         55.47
Peak output token throughput (tok/s):    60.00
Peak concurrent requests:                2.00
Total token throughput (tok/s):          277.34
---------------Time to First Token----------------
Mean TTFT (ms):                          255.31
Median TTFT (ms):                        251.60
P99 TTFT (ms):                           272.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          17.10
Median TPOT (ms):                        17.14
P99 TPOT (ms):                           17.16
---------------Inter-token Latency----------------
Mean ITL (ms):                           17.10
Median ITL (ms):                         17.13
P99 ITL (ms):                            17.79
==================================================

and then again with 32 requests in flight, which is the same command with two numbers changed:

--max-concurrency 32 --num-prompts 640

Starting initial single prompt test run...
Skipping endpoint ready check.
Starting main benchmark run...
Traffic request rate: inf
Burstiness factor: 1.0 (Poisson process)
Maximum request concurrency: 32
100%|██████████| 640/640 [05:23<00:00,  1.98it/s]
tip: install termplotlib and gnuplot to plot the metrics
============ Serving Benchmark Result ============
Successful requests:                     640
Failed requests:                         0
Maximum request concurrency:             32
Benchmark duration (s):                  323.10
Total input tokens:                      655360
Total generated tokens:                  163840
Request throughput (req/s):              1.98
Output token throughput (tok/s):         507.09
Peak output token throughput (tok/s):    960.00
Peak concurrent requests:                55.00
Total token throughput (tok/s):          2535.46
---------------Time to First Token----------------
Mean TTFT (ms):                          3176.38
Median TTFT (ms):                        3211.10
P99 TTFT (ms):                           6855.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          50.88
Median TPOT (ms):                        51.16
P99 TPOT (ms):                           63.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           50.88
Median ITL (ms):                         37.35
P99 ITL (ms):                            442.81
==================================================

Why 32 in-flight requests and not some other number? Because 32 is the ceiling we gave the server ourselves: --max-num-seqs 32 tells vLLM to work on at most 32 requests per step. Benchmarking at exactly that ceiling shows the server fully loaded, which is the number you actually want for capacity planning.

And what happens if a 33rd request arrives? Nothing dramatic, and that is worth knowing. It is not rejected and it does not error. It waits in a queue inside the server, and the moment one of the 32 running requests finishes, it takes the freed slot. So the cost of oversubscribing is waiting time, not failures: throughput stays flat because the server was already flat out, and the extra request simply sees a longer time to first token.

One subtlety: 32 is not the only ceiling in play. The startup log said this configuration holds about 19 full-length 32k conversations in its KV cache, and our benchmark requests are short, so --max-num-seqs is the limit that binds here. With long conversations the cache fills first, and instead of queueing politely vLLM starts preempting: it evicts a running request's cache and recomputes it later. Which ceiling you hit first depends entirely on how long your requests are.

One benchmarking warning before you copy this: if you re-run against a warm server, either vary the --seed or turn prefix caching off. We forgot, and time to first token "improved" from 265 ms to 61 ms purely because we had just sent the server those same prompts with the same seed.

The verdict. Tensor parallelism won nearly everything: 507.09 output tokens/sec at 32 concurrent requests, which is 70% faster than pipeline parallelism; the fastest single-request decode at 17.14 ms median per token; the largest conversation capacity at 621,392 cached tokens; and perfectly even memory across all four cards. Pipeline parallelism won exactly one metric, time to first token, by 15%. Expert parallelism cost 7% and returned nothing at this scale.

So for a 235B MoE on 4 GPUs with no NVLink between them, we would use plain --tensor-parallel-size 4 and leave both of the others off.

When the other two are the right call, why the results fall out this way, and why NVLink is the one component that would reshuffle them, is part two.

Step 8: Errors you will actually hit #

Every one of these is a real message we collected while doing this, not a hypothetical.

"must be divisible by tensor parallel size" #

We asked for 3 GPUs, which is a perfectly reasonable-sounding thing to want, and got:

pydantic_core._pydantic_core.ValidationError: 1 validation error for VllmConfig
  Value error, Total number of attention heads (64) must be divisible by tensor
  parallel size (3).

What it means: the rule from Step 3. 64 heads cannot be shared out evenly among 3 GPUs. Good news, it fails in about a second, before loading a single byte of weights.

The fix: pick a --tensor-parallel-size that divides your head count. Powers of two are the safe habit.

"Failed to load model - not enough GPU memory" #

Then we tried 2 GPUs, which puts about 110 GiB of weights on a 95 GiB card. It got most of the way through loading and then died:

ERROR [gpu_model_runner.py:5403] Failed to load model - not enough GPU memory.
Try lowering --gpu-memory-utilization to free memory for weights, increasing
--tensor-parallel-size, or using --quantization.
(original error: CUDA out of memory. Tried to allocate 768.00 MiB. GPU 0 has a
total capacity of 95.01 GiB of which 438.31 MiB is free. Including non-PyTorch
memory, this process has 94.57 GiB memory in use.)

What it means: exactly what it says. The weights for half this model do not fit on one of these cards. Note the useful detail in there, 438.31 MiB is free out of 95.01 GiB, so it filled the card almost exactly and then had nowhere to put the next 768 MiB chunk.

The fix: vLLM lists the three real options itself, and for our case only one of them helps. Lowering --gpu-memory-utilization would make things worse, not better, because it reduces the space available for weights.

Quantizing further would work but changes the model. So the answer is more GPUs, which is the whole point of this post.

Worth knowing: this one is slow to fail, because it has to read and place most of the weights before it runs out. Budget several minutes, unlike the divisibility error which fails instantly.

"Unknown SF transformation", the one that cost us the most time #

This is the error we did not see coming, and it is worth the whole section. With 4 GPUs and everything sized correctly, all four workers died during startup:

RuntimeError: Assertion error (/workspace/.deps/deepgemm-src/csrc/apis/layout.hpp:60):
Unknown SF transformation

What it means: this model stores its FP8 weights in blocks, with a separate scale factor per 128x128 block, which you can see in its config as "weight_block_size": [128, 128]. vLLM hands that kind of matrix multiplication to a library called DeepGEMM, and DeepGEMM did not know how to lay out those scale factors ("SF" is scale factor) on our particular GPU. The RTX PRO 6000 is Blackwell, but it reports as sm_120, which is not the same silicon target as the data-centre Blackwell parts that DeepGEMM is usually exercised on.

Notice how unhelpful the message is if you do not know that background. Nothing in it mentions FP8, quantization, or your GPU.

The fix, which is one environment variable:

docker run -d ... -e VLLM_USE_DEEP_GEMM=0 ... vllm/vllm-openai:latest ...

That tells vLLM to use its own FP8 kernels instead of DeepGEMM. Startup then went through cleanly. There is a performance cost to giving up a specialised kernel, so on hardware where DeepGEMM works you would leave it on.

The general lesson: a quantized model is a contract between the checkpoint's format and a kernel that understands it. When a big quantized model fails to start on hardware that clearly has enough memory, suspect the kernel and the number format before you suspect your parallelism settings.

A confusing parse error when you try to run something else in the container #

vllm serve: error: argument --compilation-config/-cc: Invalid JSON: expected value at line 2

What it means: you ran docker run ... vllm/vllm-openai:latest python3 -c "...", but the image's entrypoint is already vllm serve, so your Python source got handed to vLLM as a command-line argument.

The fix: --entrypoint python3, as shown in Step 5.

"No available shared memory broadcast block found in 60 seconds" #

What it means: usually nothing. It shows up while vLLM is busy compiling or capturing CUDA graphs and the worker processes have not checked in for a minute. If it repeats forever and startup never finishes, then you probably forgot --ipc=host and the workers cannot pass data to each other through shared memory.

The fix: add --ipc=host. If you already have it, wait a bit longer, because CUDA graph capture on a big model is genuinely slow.

That is the runbook complete: the model is serving, you know what every flag is doing, and you know the failure modes.

Wrapping up #

Four things to carry out of this, all of them checks you can run in a minute.

One. Check your disk before you download, because this cost us more than any GPU problem did. A quarter of a terabyte of weights on a shared machine is not just a storage question, it is a question about everything else living on that disk. Ours was a Kubernetes node, free space crossed the kubelet's eviction threshold, and it evicted the platform's own pods and garbage-collected locally-built images that no registry could replace. df -h first, and leave real headroom.

Two. Check num_key_value_heads in config.json before you plan your hardware. It, not the parameter count, is usually what limits how many GPUs you can split across cleanly. Ours is 4, which is exactly why we run at -tp 4 and not -tp 8.

Three. Work out the memory on paper first. Parameters times bytes-per-parameter gives you the weights, and then remember the weights are only one of three things that must fit, alongside the conversation cache and the working space. A model whose weights just barely fit is a model that cannot serve anybody.

Four. Read the startup log. Model loading took, Available KV cache memory, GPU KV cache size and Maximum concurrency tell you, in four lines, whether your setup is sane and how many users it can actually hold. A negative cache number is the clearest error message in the whole stack.

And for a 235B mixture-of-experts model on four GPUs with no NVLink between them, the answer is plain --tensor-parallel-size 4. It was faster nearly everywhere, it gives the most conversation capacity, and it splits memory perfectly evenly.

Try it on whatever you have. Two GPUs are enough to see every one of these steps in action, and the log lines mean the same thing whether you are running 4 GPUs or 40. If you hit something we did not cover, tell us and we will add it.

Part two is the why. How slicing a layer across GPUs divides the prefill arithmetic between them, why that costs you an all-reduce at every layer, why the bill lands hard on time to first token but barely registers during decode, and why NVLink is the single variable that decides whether tensor parallelism wins. Coming next.

Credits and references #

• vLLM parallelism and scaling guide: docs.vllm.ai/en/latest/serving/parallelism_scaling.html
• vLLM memory and optimization docs: conserving_memory and optimization
• Model card and config: huggingface.co/Qwen/Qwen3-235B-A22B-Instruct-2507-FP8
• Thanks to the vLLM maintainers, whose startup logging is the best free lesson in distributed inference available anywhere.
